processor

Intel Haswell-U series processors.

CPU

Example: I5-4300U, I5-5200U, I5-5300U, I5-5287U.

memory

technology

Single channel DDR3L 1600MHz

maximum capacity

8GB

Memory slot

1*204Pin DDR3 SO-DIMM(Non-ECC)

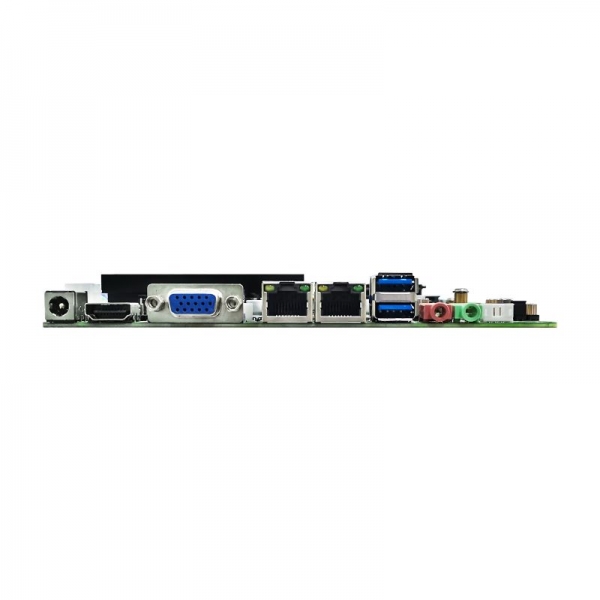

Post I/O

DC interface

1 standard 2.5mm DC power socket

HDMI

Standard D socket, supporting HDMI1.2, maximum resolution: 2560*1600@60Hz.

VGA

Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz.

Ethernet

1 or 2 Gigabit network cards (LAN1 and USB2.0 are laid together), and Intel I211AT network card chip.

Audio

1 (Line-out, Mic-in)

USB port

2 USB 3.0

Internal connector

USB port

6 (one FUSB can transfer out two USB2.0 interfaces);

serial port

6 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode)

parallel port

1 2*13Pin pin

PS/2 interface

1 (PS/2 mouse, PS/2 keyboard)

Audio

1 2*5Pin pin (Mic-in, Line-out)

power amplifier

1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers.

JHDMI interface

2*8Pin pin, supporting the maximum resolution of 2560*1600@60HZ(HDMI and JHDMI can only be selected).

JVGA

1*12Pin pin, the maximum supported resolution is 2560 * 1600 @ 60hz (VGA and JVGA can only be selected).

LVDS interface

Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS and EDP can only be selected).

Mini-PCIe

1 full-length card Mini PCIe slot, supporting WIFI, 4G module.

MSATA

1 Mini PCIe slot for full-length card, supporting SSD hard disk.

serial ata

Provide one 7Pin interface and one 1*4PIN SATA power interface, both of which support SATA 3.0.

GPIO

8-way bidirectional 3.3V

PWR interface

1 standard 2x2PIN power socket

Watchdog

output

system reset

space

Programmable for 1-255 seconds

power consumption

Maximum power

Standby power consumption: 10.8W Full load power consumption: 56.4W

environment

temperature range

working environment

Storage environment

Temperature:-10 ~ 60℃ Humidity: 5%~95%

Temperature: -40~85℃ Humidity: 5%~95%

Physical size

measure

170 mm x 170 mm
