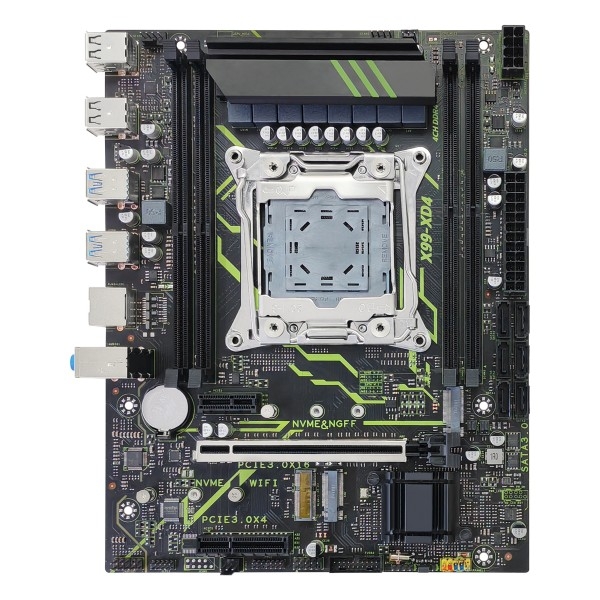

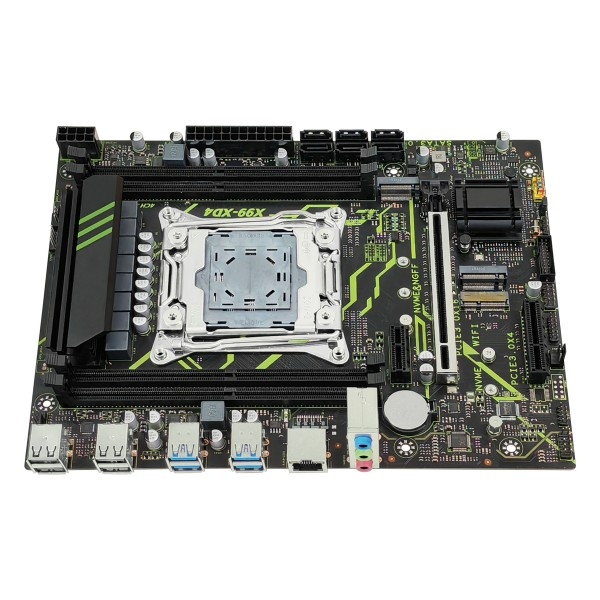

Motherboard chip |
Intel C612 chipset |
|
CPU |
InteI LGA 2011-3 specification slot processor |
|
memory |
Four-channel memory architecture; 4*DDR4; 288-Pin DIMM slot, supporting 2133/2400 MHz, and a single slot can support 32GB at most. (Actual memory frequency support depends on processor type and memory stick) |
|
Storage device interface |
1* M.2(CN3) slot (NVME&NGFF protocol); (M.2：Gen3 x4 & sSATA3.0); Support 2280/2260/2242 type equipment; 1* M.2(CN2) slot (NVME protocol); (M.2：Gen3 x4); Support 2280/2260 type equipment; 6* SATA 3.0 interface; |
|
Network function |
1*(RJ45+LED) interface; (Realtek Gigabit NIC chip) |
|
PCIE expansion slot |
1*PCIE2 slot (1x PCIe3.0 x16 slot); 1*PCIE5 slot (1x PCIe3.0 x 4 slot); 1*PCIE1 slot (1x PCIe2.0 x1 slot); |
|
audio frequency |
1*Line out； 1*Mic In； 1*Line In； 1*JAudio built-in pin (Realtek 7.1 sound card chip) |
|
Wireless/Bluetooth |
1 * M.2 WIFI interface (supporting 2230 WiFi/BT module); Support PCIe protocol |
|
JTPM |
1*TPM2.0 (14-1pin) |
|
Usb interface |
Rear panel: 4 * USB2.0；; 4 * USB3.0； Front panel: 1 set of FUSB3 pins (2 * USB3.0 ports can be expanded); 1 set of FUSB1 pins (2 * USB2.0 ports can be extended); |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CFAN； 2*3Pin SFAN ; 1*4PinSFAN fan |
|
Power input |
24Pin+8Pin ATX power socket |
|
product size |
185 x 237.13 mm x 6L； M-ATX motherboard |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 50~70W Full load power consumption: 260~350W (for reference only) (If you want to install hardware equipment with high power consumption, please use a high-power power supply.) |
|
other |
1*JBAT jumping cap; 1*JLPC diagnostic card interface; 2*M.2 mode switching pin |
|
support system |
W Windows 7、Windows 10、Windows 11 |
