Motherboard chip

Intel C612

CPU

Intel Xeon E5 LGA2011-3 processor

Optional: E52678v3, E52696v3, E52686v4, E5266v6 v3 and so on.

memory

4*DDR3 DIMM, 1066/1333/1600/1866MHZ, single slot supports 32G at most.

Cunzhu

1* M.2 slot (NVME only), 1* M.2 slot (NVME/NGFF pin skipping); 6*SATA 3.0 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

PCIE slot

1*PCIE X16 slot, 1*PCIE X4 slot, 1*PCIE X1 slot.

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

Realtek ALC897 HD Audio Chip

WIFI

1*M.2 WIFI slot

TPM

1*TPM pin

Usb interface

IO interface: 4*USB2.0,4*USB3.0.

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be expanded) and 1 set of USB3.0 pins (2 USB3.0 ports can be expanded).

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*4Pin SYS fan; 2*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

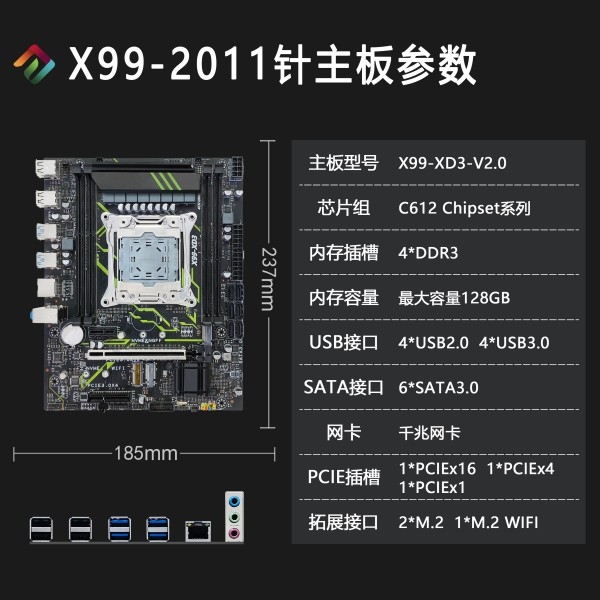

product size

ATX motherboard specification, 237.13 MM x 185 MM x 6L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~260W

other

1*JBAT； 2*5Pin diagnostic card interface
