processor

Support Intel LGA2011-V3 series processors

Southbridge

C612 Chipset series

memory

technology

Dual channel DDR 3/DDR 4; DDR3 supports 1066/1333/1600/1866(MAX)MHz memory; DDR4 supports 2133/2400(MAX)MHz memory.

maximum capacity

64GB； DDR3 and DDR4 cannot be mounted at the same time.

Memory slot

2 * 240 PIN DDR3 ； 2 * 288 PIN DDR4

Post I/O

USB port

2 USB 3.0；; 4 USB 2.0

Audio

1 (Mic-in, Line-out, Line-in)

Ethernet

1 Gigabit network card

PS/2

1 KB interface and 1 MS interface.

Internal connector

USB 2.0

2 (one FUSB can switch out two USB 2.0 interfaces);

USB 3.0

2 (one FUSB can switch out two USB 3.0 interfaces);

JLPC

1 x 2x5Pin pin

FAN

2 (1*CFAN+1*SFAN)

PCIe

2 PCs (1 PCIe X16 3.0；; 1 PCIe X1 2.0)

SATA

3 SATA3.0

ATXPWR interface

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

JAudio

1 x 2x5Pin pin

F_PANEL

1 x 2x5Pin pin

M.2 interface

1 (PCIE/SATA protocol is supported, and it can be switched by jumping the cap)

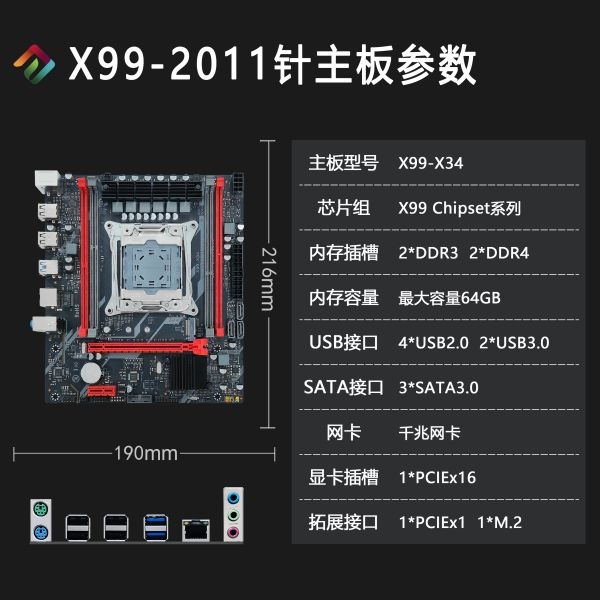

Physical size

measure

190 mm x 216 mm
