processor

Xeon E5 LGA2011-3 Pin Series Processor

Southbridge

H81 Chipset series

memory

technology

Dual channel DDR3/DDR4

DDR3 1066/1333/1600/1866MHzDDR4 2133/2400MHZ

maximum capacity

64GB

Memory slot

2 * 240 PIN  ECC/DDR3； 2 * 288PIN  ECC/DDR4

Post I/O

USB port

2 USB 3.0；; 4 USB 2.0

PS/2 interface

1 (PS/2 mouse, PS/2 keyboard)

Audio

1 (Mic-in, Line-out, Line-in)

Ethernet

1 Realtek Gigabit NIC

Internal connector

USB 2.0

4 (one JUSB can switch out two USB 2.0 interfaces);

serial ata

4 SATA interfaces (2 SATA2.0, 2 SATA3.0)

PCIe

3 (1 PCIe x16；; 2 PCIe x1)

ATXPWR interface

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

Audio

1 x 2x5Pin pin

JLPC

1 x 2x5Pin pin

M.2 interface

2 M.2 interfaces (PCIE & SATA)

FAN

1 x 1*4PIN_SFAN, 2 x 1 * 3pin _ sfan and 1 x 4pin _ cfan.

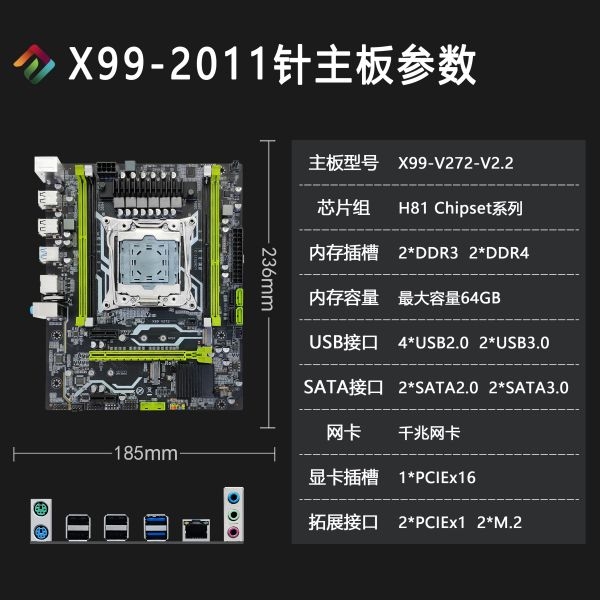

Physical size

measure

185 mm x 236 mm
