Motherboard chip

Intel Q57

CPU

Intel Xeon E5 LGA2011-3 processor

Optional: E5266v3, E5 2673 V3, E5 2678V3, E5 2696V3, etc.

memory

4*DDR3 DIMM, dual channel (red slot is the main slot and black slot is the auxiliary slot), 1066/1333/1600/1866MHZ, and single slot can support 32G at most.

Cunzhu

1* M.2 slot (NVME/NGFF jumper switch, left NVME mode, right NGFF mode); 4*SATA 2.0 interface

network

1*RJ45 interface

Network card chip

Realtek RTL8111H Gigabit NIC Chip

PCIE slot

1*PCIE X16 slot, 1*PCIE X1 slot

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin

Audio chip

USB sound card CJC6811A

PS/2

1*PS/2 interface

Usb interface

IO interface: 6*USB2.0 interface.

Built-in pins: 2 sets of USB2.0 pins (4 USB2.0 ports can be expanded)

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan

Power input

24Pin+8Pin ATX power socket

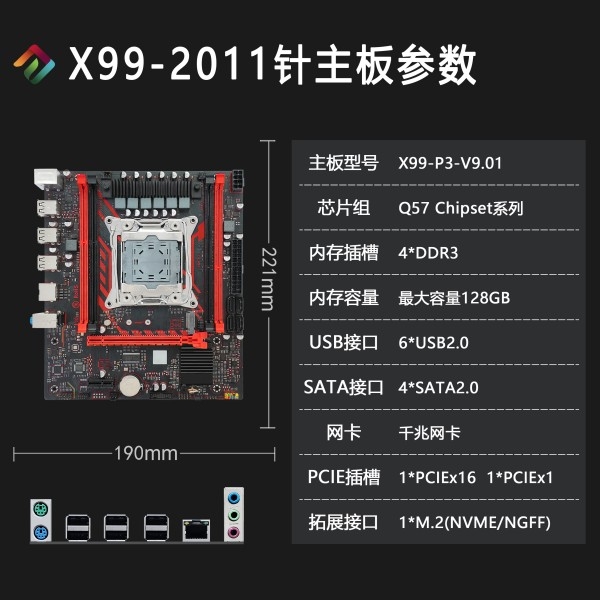

product size

M -ATX motherboard specification, 190 x 220.57 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 50~70W Full load power consumption: 180~300W

other

1*BAT； 2*5Pin diagnostic card interface
