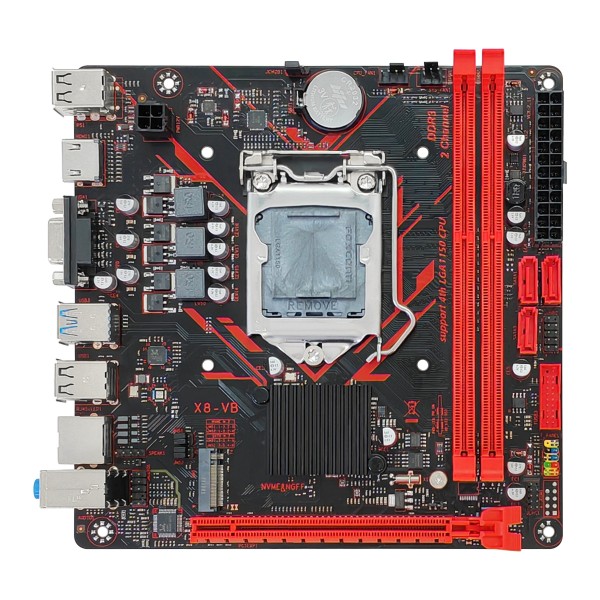

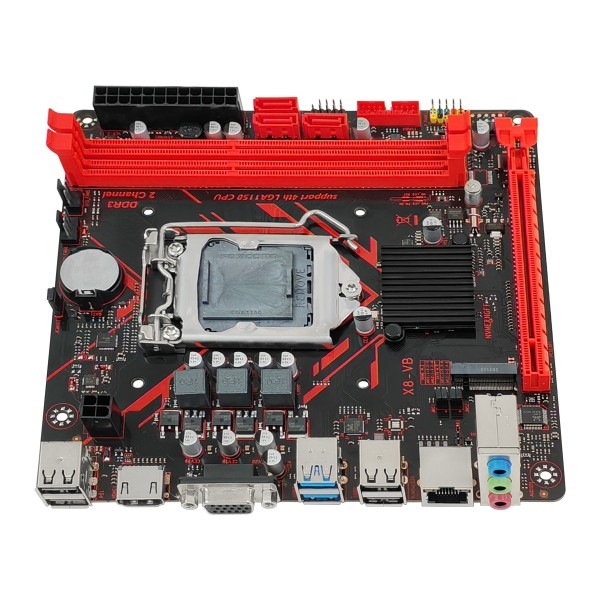

Motherboard chip |
Intel H81 chipset |
|
CPU |
Support LGA1150 plug: Intel® Xeon®E3 v3； Intel Core i7/i5/i3 processor (4th generation); Intel® Pentium® processor/Intel® Celeron® processor; |
|
memory |
Dual-channel memory architecture; 2*240Pin-DDR3 DIMM slot, supporting the maximum memory of 16GB；; Support DDR3 1600/1333MHz (Actual memory frequency support depends on processor type and memory stick) |
|
save |
Intel H81 Chipset: 1* M.2 slot (NVME&NGFF protocol); Support 2280 storage devices (PCIe2.0 x4&SATA3.0 mode) 1*SATA 3.0 interface (SATA1) 2*SATA 2.0 interface (SATA3/4) |
|
Display function |
1*HDMI1.4； 1*VGA； |
|
Network function |
1*(RJ45+LED) interface (Realtek 1Gb network card chip) |
|
PCIE expansion slot |
1*PCIEXP1 full-length X16 slot (Intel processor 1x PCIe2.0 x8 slot); |
|
audio frequency |
1*Line out； 1*MIC In； 1*Line In； 1*JAUDIO front audio connector (Realtek 7.1 HD audio chip ALC897) |
|
Usb interface |
Rear panel: 2 * USB 3.0; 4*USB2.0； Front panel: 1 set of JUSB 2 pins (2 USB2.0 ports can be extended); 1 set of FUSB3 pins (2 USB2.0 ports can be extended); |
|
Functional pin |
1*F_PANEL1 panel pin; 1*4Pin buzzer pin; 1*4Pin CPU_FAN1； 1*3Pin SYS_FAN1； |
|
Power input |
24Pin+4Pin ATX power socket |
|
product size |

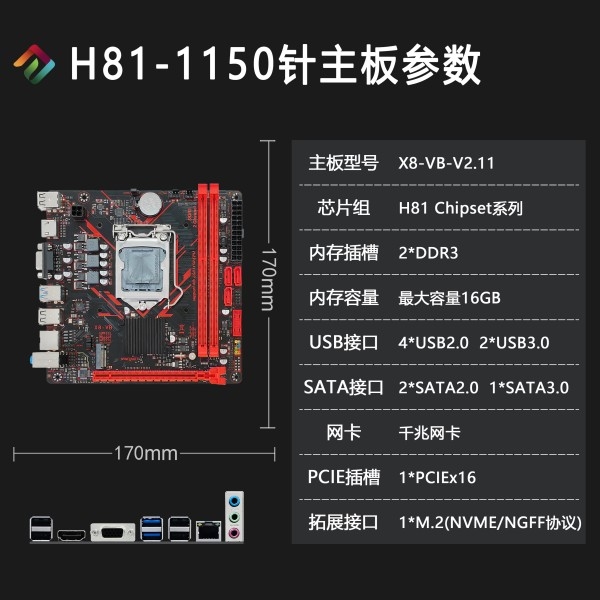

ITX motherboard specification, 170 x 170 mm x 4L |
|
Working temperature |
-10℃~60℃ |
|
Working humidity requirements |
10%~90% without condensation |
|
Storage temperature |
-25℃~70℃ |
|
power consumption |
Standby power consumption: 23~25W Full load power consumption: 95~105W (for reference only) (If you want to install hardware equipment with high power consumption, please use a high-power power supply.) |
|
other |
1*JLPC needle connection; 1*JCMOS reset pin; 2 sets of M.2 mode switching pins (JMS1/JMS2) |
|
operating system |
W Windows 7、Windows 10 |
